PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator and balanced rotors.

We design and build the PROPDRIVE v2 motors completely in-house allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

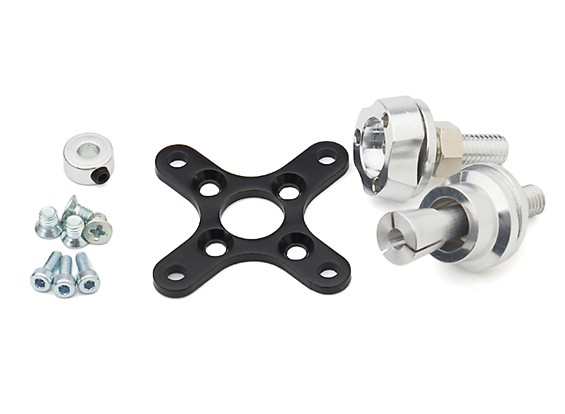

We have included a collet style adapter, as well as a bolt on prop adapter.

All performance figures are the result of realistic testing on our own motor dynos.

Specs:

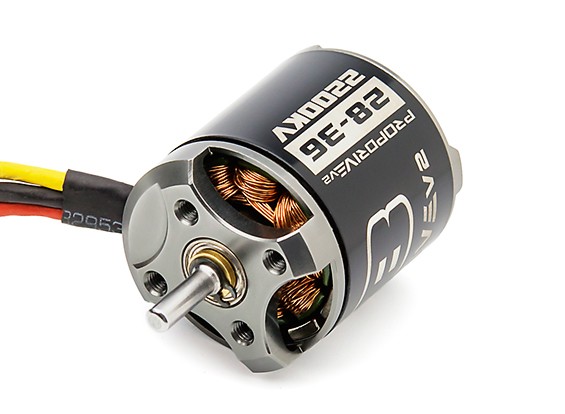

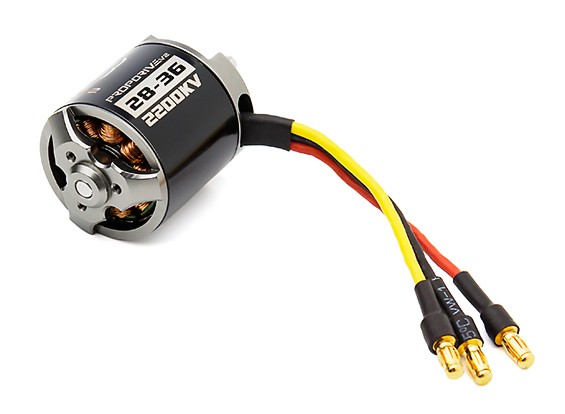

Model: PROPDRIVE v2 2836 2200KV
KV: 2200 KV
Max current: 50A
ESC: 55~70A
Cell count: 3s~4s Lipoly
Pole Count: 12
Bolt holes: 16 & 19mm
Bolt thread: M3
Shaft: 3.175mm
Connectors: 3.5mm Bullet
Weight: 83g

Prop Test Data:
5x5 - 11.1V / 232W / 20.9A / 0.64kg thrust
5x5 - 14.8V / 516W / 34.9A / 1.021kg thrust
6x4 - 11.1V / 310W / 28.0A / 0.945kg thrust
6x4 - 14.8V / 696W / 47.0A / 1.17kg thrust
