PRODUCT DETAILS > ELECTRONIC ACCESSORIES > > EAGLE TREE HIGH G GFORCE MICRO SENSOR

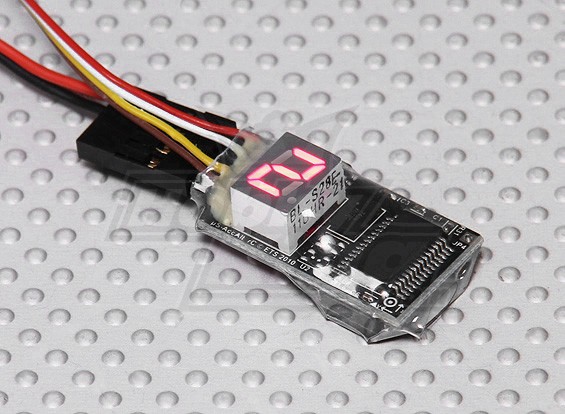

Eagle Tree High G Gforce Micro Sensor (#G-FORCE SENSOR)
Stand Alone or E logger Unit
Price: R625
Weight: 5 grams
Product Details:
Need to know how many Gs you pulled in that last barrel roll? This unit from Eagle Tree is the worlds first stand-alone G-Force meter for RC models.
This tiny, low cost sensor is factory calibrated, and measure Gs in the X, Y, and Z axes during flight and the maximum encountered forces on each axis (in 10ths of Gs) are displayed on the built-in 7 segment LED. The high G sensor measures up to 40g (at least 38g) in the X and Y axes and up to 8g in the Z axis. You can also rev up your E-logger or OSD for complete flight data.
Resolution: approx. 0.05 G in each axis
Power input (Standalone Mode) : 4V to 16V (6V max for High G Sensor)
Weight: approximately 4 grams (0.15 oz)
Dimensions: approximately 28 mm x 16 mm x 10 mm (1.1 x 0.62 x 0.4)
