Wireless Trainer link easily connects compatible radios together
250 internal model memory, plus external SD card memory support
High-resolution backlit LCD display

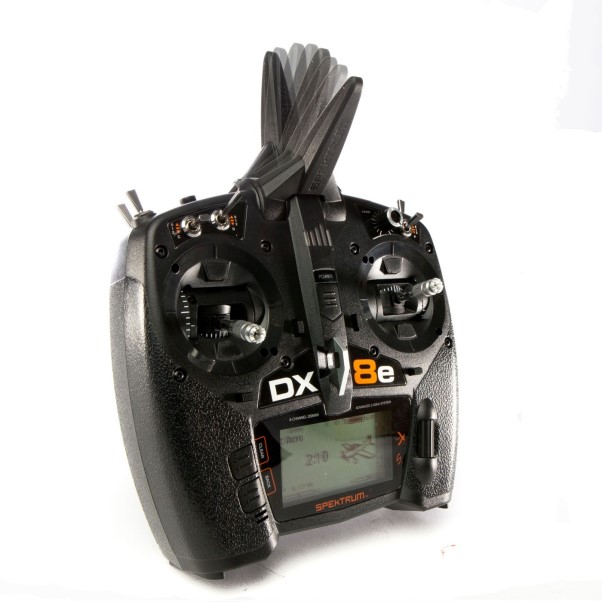

Practically indestructible adjustable antenna and case design
VTX control lets you change video channels directly from the DX8e
Digital Switch adaptability
Integrated FPV racing lap timer function
AS3X technology gain adjustments without a PC
Multirotor flight mode setup
7 airplane wing types and 6 tail types
2 swashplate types
4 sailplane wing types and 3 tail types
7-point throttle curves for airplanes and helicopters
7-point pitch and tail curves for helicopters
Cross-platform model sharing with other Spektrum? transmitters
4 AA batteries included
EN328 compatible
Needed to Complete
DSMX Receiver
Whats in the box?
(1) Spektrum DX8e Transmitter Only
(1) User Manual

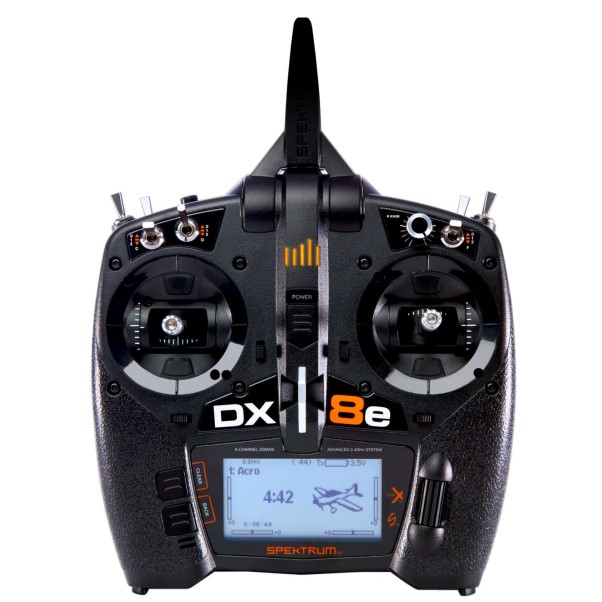

Upgrading from a limited 6-channel radio to a far more versatile 8-channel radio with computer functionality on a budget doesnt mean you have to settle for less than the best. The Spektrum DX8e gives you the unbeatable response of DSMX technology, the simplicity of Spektrum AirWare firmware as well as many other features you wont find on other budget radios.
Your growing skills deserve a transmitter that can keep pace. The DX8e comes equipped with the programming you need, no matter what you fly. And because its based on the same Spektrum AirWare firmware used in most other Spektrum transmitters, you can share model setups with just about any Spektrum user you meet.
With the flexibility 8-channels delivers, its exciting to consider all the options many modern aircraft can accept. Aircraft with flaps, retracts and SAFE select can now all be flown to their full potential. With its extra channels at the ready, you can consider adding lights to a switch or a simulated bomb drop option. Try out what extra flight modes and mixes can offer, play with gain settings on the AS3X systemall without sacrificing premium functions you enjoy like flaps, retracts or dual-ailerons and elevators.
Airplane Programming
7 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 2 Aileron 1 Flap, Elevon A, Elevon B
Multirotor Channel Inputs ALT (Altitude), ROL (Roll), PIT (Pitch), YAW
Multirotor Checklists and Warnings
Simplified Multirotor Flight Mode Setup and Switch Assignment
Built-In Telemetry
The built-in telemetry feature can give you real-time information on things like battery voltage, signal quality, motor temperature and more.* You can also program alerts that let you know when specific telemetry values reach or exceed limits you define.
*Requires telemetry sensors and a telemetry-enabled receiver.
Wireless Trainer Link
The wireless trainer link gives instructors the option to wirelessly buddy box with another DSMX/DSM2 transmitter. Once bound to another transmitter, ModelMatch technology will allow the DX8e to re-link without having to go through the bind process again.
WITH WIRELESS TRAINER LINK, YOU CAN:
Wirelessly buddy box with another DSMX transmitter when teaching someone to fly
Assign gimbal functions to a second camera transmitter when flying a camera drone so you can focus on avoiding obstacles and maintaining visual contact while someone else lines up the shot
Link with specially-equipped Spektrum FPV headsets to wirelessly control head tracking and remotely change camera video frequencies
Link to the Spektrum Wireless Simulator Dongle and practice flying with your favorite simulators
Patent-Pending Gimbal Design with Spring Configuration Switch
The DX8es patent-pending gimbal design lets you change gimbal spring configurations simply by moving a slider switch on the back of the transmitter. No tools are required. Just select the spring configuration that matches the mode you are using and model type you are flying. Thats it.
FOUR SPRING CONFIGURATIONS TO CHOOSE FROM:
Normal Throttle for Modes 2 and 4 (Air, Heli and Sailplane Model Types)
Spring-Centered Throttle for Modes 2 and 4 (Multirotor Model Type)
Spring-Centered Throttle for Modes 1 and 3 (Multirotor Model Type)
Normal Throttle for Modes 1 and 3 (Air, Heli and Sailplane Model Types)
The slider switch is protected by a hinged cover and slider-lock that prevents you from changing spring configurations accidentally.
Front-Access Gimbal Adjustment
Access to tension, ratchet and travel adjustments for each gimbal is conveniently through the front no disassembly required. Theres nothing to it. Even mode conversion adjustments are accessible. To create the perfect feel, just lift off the rubber access cover and make a simple adjustment.

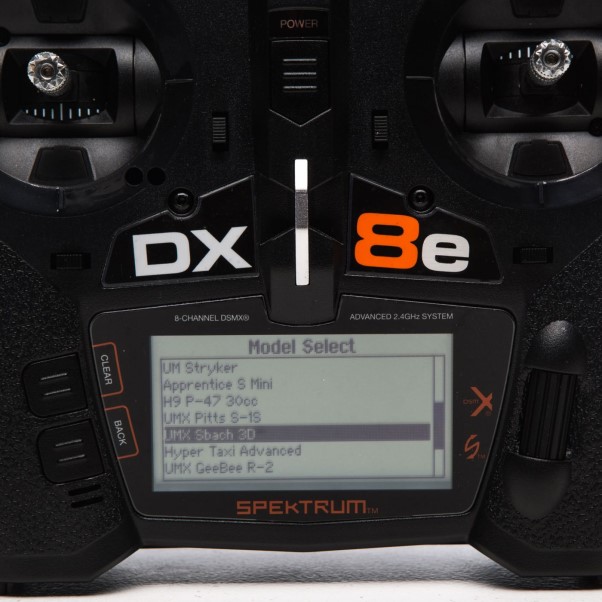

250+ Model Memory
The enormous capacity of the DX8es onboard memory means you will rarely if ever, need to juggle models between transmitter memory and your SD card. The model memory menu is easy to navigate too. Only memory slots with model settings saved to them will appear. You wont have to scroll through empty slots or move models around if one is deleted.
Specifications
Band:
2.4GHz
Channels:
8
Flight Modes:
4
Frame Rate:
11/22 Ms
Model Memory:
250
Modes:
User Selectable Mode 1-4
Modulation:
DSMX
Proportional Inputs:
5
Range:
Full
Rate Positions:
3 POS
Resolution:
2048
SD Card/Airware Capable:
Yes
Telemetry:
Integrated
Transmitter (Tx) Battery Type:
AA
Type:
Entry-level Computer
IMPORTANT note:
Re. Binding:
Ensure RX battery voltage is sufficient
Hold transmitter aprox 50-80cm away from RX whilst binding
Do NOT point TX at RX whilst Binding. Ensure TX Antenna is vertical or a different direction other than pointing toward RX
The DX8e is NOT compatible with the older DSM2 receivers.
Please note:
Limited warranty from supplier
PCRC inspects package contents and we verify basic and Binding operation before shipping out
