The JTM L-39 Albatros is a full composite Jet Aircraft. It is very light compared to other Jets in its Class [Only 7300-7800g RTF] yet has an extremely strong construction to withstand even the hardest of flying habits and high G manouvers.
Can be powered with 120mm EDF unit or Turbine 5-7KG [Kingtech K60/ New K70G2/ Wren 75 etc.]
Features:
Turbine ready
Scale Rivet details throughout
All surfaces come pre-hinged with live hinges including the Rudder.
The impressively high quality Gel-Coat Finishing is one of the first things to notice when un-boxing this Jet.
The Second thing to impress you is how well every part comes together. Minimal sanding and hardly any alignment is needed. Everything fits together very easily.
This model is truly the best priced ARF Jet around which you can get with all the hard work done for you.
Carbon fibre re-inforced Wings, Easy access Turbine hatch, plenty of space in the cockpit area and quality reliable Gear are but some of the outstanding features of this JTM Model
Assembly time - Aprox. 3-6 weeks
Specs:
scale: 1:7
Fuselage Length: 1770mm
Wingspan: 1360mm
Weight: 4675g [Incl. Thrust Tube and Gear]
Power required: 5-7kg Turbine
Throws:
Ailerons: 15mm
Elevators: 20mm
Rudder: 20mm
Flaps: 25mm Takeoff [if required] 55mm Landing
CG: 110mm from leading wing edge
Estimated RTF Weight:
7800g with Wren75 [1255g]
7265g with New K70G2 [720g]
7395g with K60 [850g]
Example of RTF Weight:
Airframe, Thrust Tube & Gear: 4675g
UAT Full: 130g
Kevlar Main tank 1.9L: 216g
Wren75 W Electronics + Plumbing: 1255g
HD Twisted Servo Lead Set: 100g
Regulator Switch 6v: 105g
4 x 2s Gens Ace Lipo Batteries [2 x 2S 2600mah RX, 1 x 2S 1000mah Brakes/ Lighting, 1 x 2S 2200mah Turbine]: 395g
Cockpit Detail: 200g
9 x Servos 6V or HV 7.4v: 400g
2 x Standard size - SAVOX SA-1256TG or similar for Flaps
2 x Wing Servos - MKS HV6130/ Corona DS239HV/ KST X10 for Ailerons
3 x Wing Servos - MKS HV6130/ Corona DS239HV/ KST X10 for Elevators + Rudder
1 x Park size Turnigy/ Blue Bird 390v for Nose Door
1 x Mini Servo - BMS21hv or similar for Steering1 X Spektrum AR20310T W Powersafe Receiver: 95g
Miscellaneous: 44g
Included:
- Fully painted composite Fuselage
- Pre-installed inlet ducting
- Pre-installed Dual Inconel Thrust Tube with rear Stabiliser
- Clear canopy with pre-installed hinge
- Fully painted Composite Wing with Ailerons and Flaps and Tip tanks
- Small parts, Hardware pack & colour coded gear door covers.
- Ailerons, Elevators, Flaps and Rudder are all PRE-HINGED

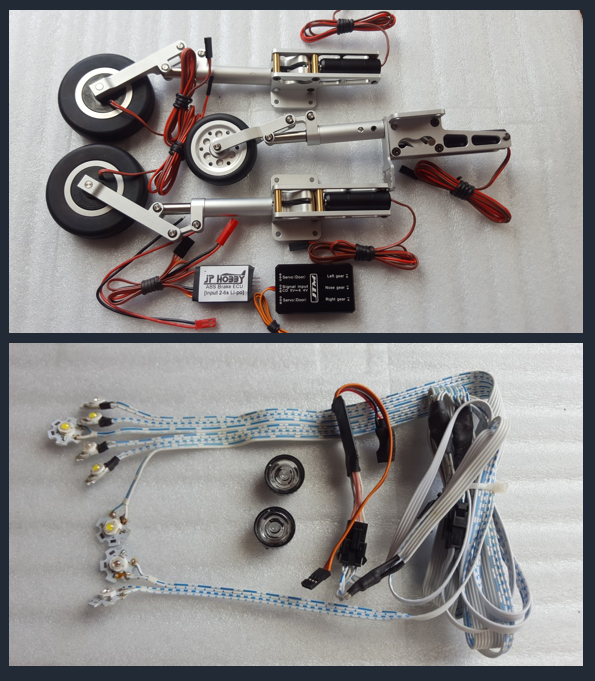

- JP Hydraulic Main and Nose Struts with Aluminium Hubs and Rubber Tyres
- ABS Electric Braking System with Controller adjustable via TX - Voltage: 7.4 - 22v [2 - 6S Lipo 1000mah]
- Strong Reliable CNC upgraded JTM Electric Retracts [max load 10kg] + Aluminium cased Controller with built in Sequencer - 7.4V [2S Lipo]
- Custom, Scale Lighting System for L-39 8pc with Wiring Harness & Controller - 7.4V

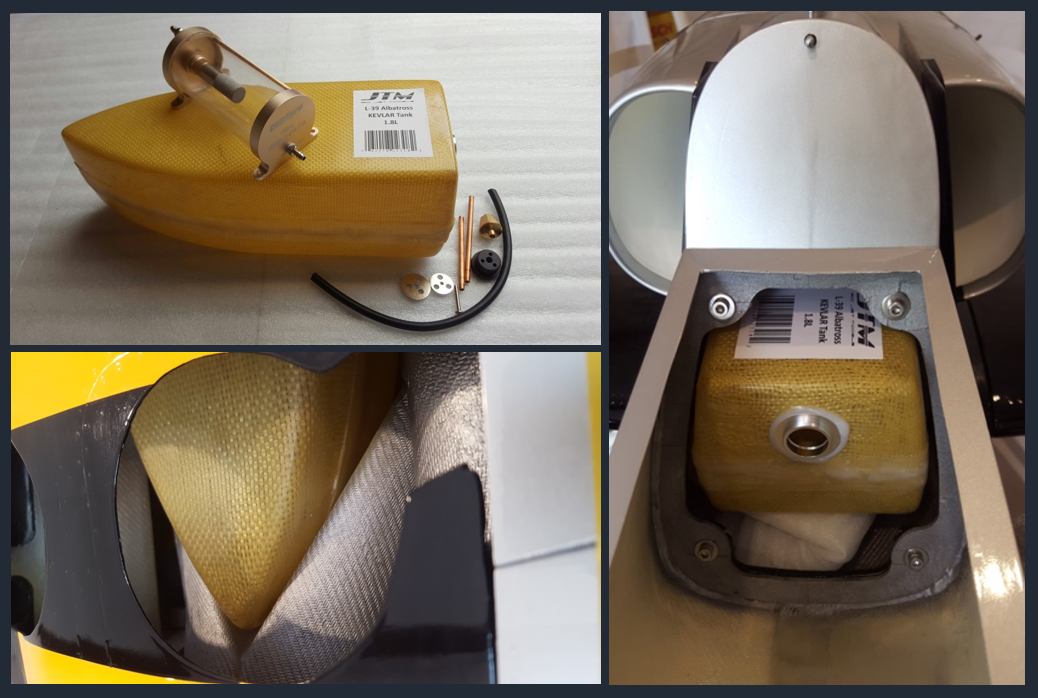

- Custom Moulded 1.8L KEVLAR Main Tank with Plumbing
Optional Accessories
125ml UAT - See our Jet Accessories
Exclusive
Cockpit components made by PCRC - Custom made L-39 Ejector Seat W
4-point harness and parachute, Instrument panel, Pilots, Joystick, Side/
Front Panels. see our Jet Accessories and Facebook posts for info/
pics
A
carefully selected must-have Hardware Kit also available as optional
extra which includes: 3D printed Festo Tap holders, Harness Conduit,
Twisted HD Servo extension Lead set [12pc], Wire Brading set, 60pc SS
2,3 mm socket head cap screw set, Anodized washer set, Main Tank Spacer
Brackets, Servo wire keeps set, Servo Connector Clips.
Various other striking colour schemes available as PRE-ORDER item. ETA 6-8 weeks after confirmation
This
is a JTM Jet. A High end quality product at a great price with superb
detailed finish made by Jet Teng Models - Master RC Model Jet builders.
see this jet in action here: [copy and paste link]
https://www.youtube.com/watch?v=F03VuNU60ik&index=30&t=0s&list=PL8v5m7JGglbQI2PtPuT8L-cu6l8msYnLa
https://www.youtube.com/watch?v=Nlb36ef7fO0&index=31&t=0s&list=PL8v5m7JGglbQI2PtPuT8L-cu6l8msYnLa
History:
The Aero L-39
Albatros is a high-performance jet trainer developed in Czechoslovakia
by Aero Vodochody. It was designed during the 1960s as a replacement for
the Aero L-29 Delfín as a principal training aircraft. The L-39
Albatros has the distinction of being the first of the second-generation
jet trainers to be produced, as well as being the first trainer
aircraft to be equipped with a turbofan powerplant. The type was
exported to a wide range of countries as a military trainer.
The
L-39 Albatros later served as the basis for the updated L-59 Super
Albatros, as well as the L-139 (prototype L-39 with Garrett TFE731
engine). A further development of the design, designated as the L-159
ALCA, entered production in 1997. To date, more than 2,800 L-39s have
served with over 30 air forces around the world. The Albatros is the
most widely used jet trainer in the world; in addition to performing
basic and advanced pilot training, it has also flown combat missions in a
light-attack role.
A Czech Air Force L-39
Role Military trainer aircraft
Light ground-attack aircraft
Manufacturer Aero Vodochody
Designer Jan Vlcek[1]
First flight 4 November 1968
Introduction 28 March 1972 with the Czechoslovak Air Force[2]
Status Out of production, in active use with various air forces
Primary users Soviet Air Force
Czechoslovak Air Force
Libyan Air Force
Syrian Air Force
Produced 1971–1996[3]
Number built 2,900[3]
Developed from Aero L-29 Delfín
Variants Aero L-39NG
Developed into Aero L-59 Super Albatros
Aero L-159 Alca
https://www.youtube.com/watch?v=L74aIt_3UWI
______________________________________________________________
The Breitling Jet Team is the largest civilian aerobatic display team in Europe. Based in Dijon, France, it flies seven Czech Aero L-39 Albatros jets.
The team flies a display lasting 18 to 20 minutes that includes formation flying, opposition passes, solo routines, and synchronized maneuvers. The team performs across Europe and the Middle East, with multiple engagements per year, including international airshows and Breitling corporate events
