- 4.8Kg.cm/0.065sec/60deg@7.4V - 4.1Kg.cm/0.072sec/60deg@6.0V - 3.6Kg.cm/0.084sec/60deg@4.8V Dimensions: 23mm x 12mm x 26.3mm Weight: 20g
Motor: coreless/1215m
Wire Length: 220mm
Spline: 25T
Output Shaft: 4.9mm
Plug: FUT, JR Propo Usage: For 450-480 X360 rc helicopter & Airplane
Function:

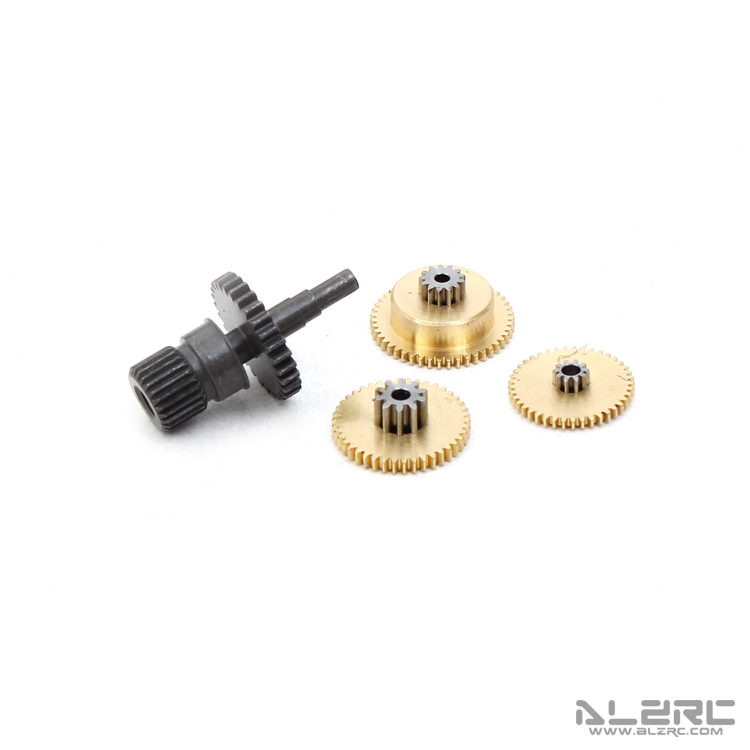

Suitable for the 450-480 level helicopters & airplane The 1215 5-pole coreless motor, fast response, low energy consumption, high efficiency, than conventional motor life up to five times more, lifetime number of 200,000 times. High precision potentiometers, consistency, and one million times higher life potentiometer. High-resolution digital chip, stable performance, strong anti-interference ability, fast response, high precision, control is more delicate and smooth operation. Shell is made of aluminum alloy shell, the high-precision CNC machining shape, better protection of the product accuracy and thermal performance servos. All metal gear, the output gear using titanium processing, enhance the strength and durability of gears, greater smoothness, even smaller gears virtual spaces. Dual bearing design, the use of imported precision miniature bearings, concentricity greater degree of protection gear and smoothness.
Package included:
1 x DS452MG Coreless Servo 3 x Servo arm-A
1 x Screw (M2.5x4mm)
PCRC Rated: Great Servo! Quick, Quiet, Strong, smooth and Precise. Centers perfectly. Behaves like top end Servos similar to MKS/ KSTs. Doesnt buzzzz unnecessarily.
CONS: Servo arms are a bit flimsy. For High torque applications possibly use our CNC Horns or Nylon KST Horns/ SAB HA052 Servo Arm Set [press fit required]
NOTE: This Servo has been upgraded with BLACK & RED outer shell not Grey as listed in pics
