Coreless Motor refers to the armature of the motor. A conventional servo motor has a steel core armature wrapped with wire that spins inside the magnets. In a coreless design, the armature uses a thin wire mesh that forms a cup that spins around the outside of the magnets eliminating the heavy steel core.
The DS3235-270 is a one of our stronger standard size servos we keep. It is a high quality digital servo with metal gears and produce an 35kg.cm torque at 7.4V. The servo has 270 deg operating angle. The Advantage - This design results in smoother operation and faster response time Quick Spec
Torque at 7.4V: 35.2kg.cm Speed at 7.4V: 0.12sec/60 degree Supply Voltage: 5-8.4V PWM Voltage: 3.3-5V Spline Type : 25T Weight: 60g Motor Type: Coreless Motor
Gear Type: Stainless Steel and Aluminum

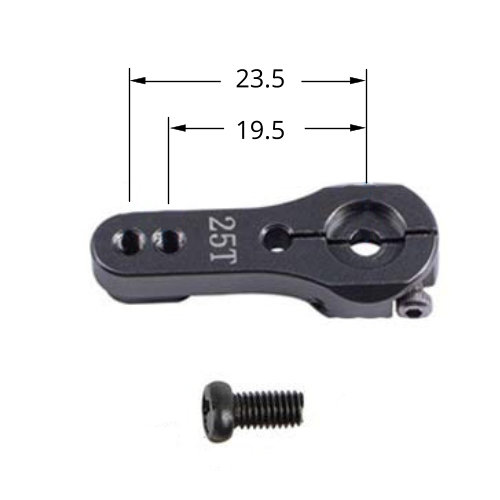

Includes: 1 x DS Servo 35kg.cm 270 Degree 1 x Metal Servo Arm 1 x Nylon Servo Accessories
