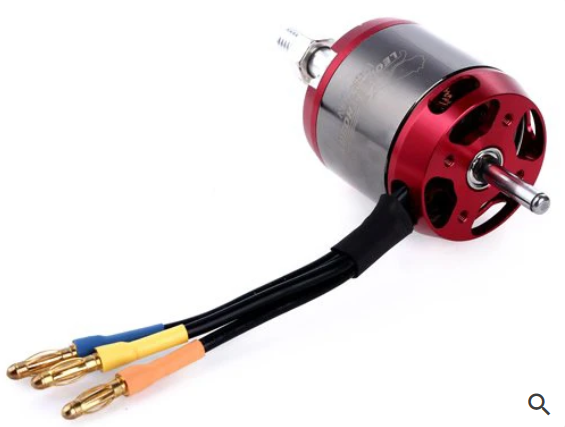

Leopard 4250-12T 360kv Brushless Airplane Motor (#Leopard 4250 360KV)
4-6S/ 870w
Price: R1190
Weight: 235 grams
Product Details:
Expertly designed and precisely constructed using the most advanced CNC components, Leopard Brushless Motors adhere to the highest and strictest quality standards. Leopard Power Model Co. has over 15 years experience manufacturing high quality precision hardware, and is focused on ensuring the consistency of their products. Constructed from beautifully anodized aluminum alloy and top-quality components, Leopard motors deliver optimum performance, quality, and reliability at a price much less than many other premium motor brands on the market today.
Leopard LC-series brushless motors feature an extended shaft which protrudes out the rear of the motor. This allows the user flexible mounting options without having to disassemble the motor to reverse the shaft. The user can either (1) mount the motor in a traditional manner against the front of a firewall and use the included bolt-on prop adapter, or (2) mount it against the rear of the firewall with the shaft extending forward. This mounting option is most common in sailplanes or racer-style models and requires you to use a collet-style adapter available separately or sometimes included with your model.
Whats included:
LC4250-12T 360kv motor, pre-soldered with 4.0mm male bullet connectors Set of matching 4.0mm bullet connectors for your ESC X-mount plate Bolt-on style threaded prop adapter
Features:
Lightweight design uses reinforced materials to ensure high-speed operation under constant conditions High efficiency w/ low running temperatures Built from top-quality materials with premium imported bearings Dynamic balancing accuracy of at least 99%, greatly improving the efficiency of the motor. Hand wound with precision High overload capacity Excellent heat dissipation Designed to endure even the most demanding applications Long service life with minimal maintenance required
Specifications:

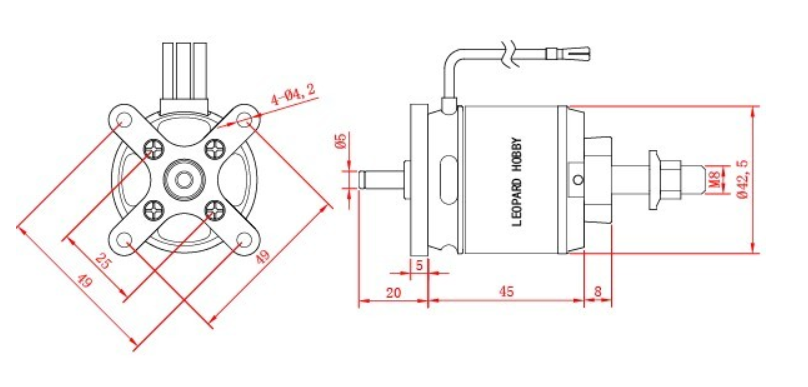

KV: 360 Lipo cells: 4-6s No load current (10.0v): 0.8A Max current: 28A Resistance: .0868 ohm Watts: 869W Prop adapter shaft size: M8 Motor shaft diameter: 5.0mm Dimensions: 42.0 x 50.0 Weight: 208g (motor only)* | 235g (with prop adapter & x-mount)* Prop: 15x8 - 16x10
Recommended model weight: 2800g
This motor is roughly equivalent to a Rimfire .32, E-Flite Power 32, and Suppo 3520
