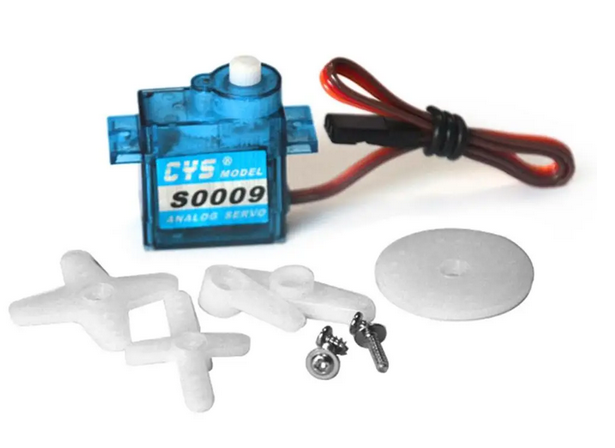

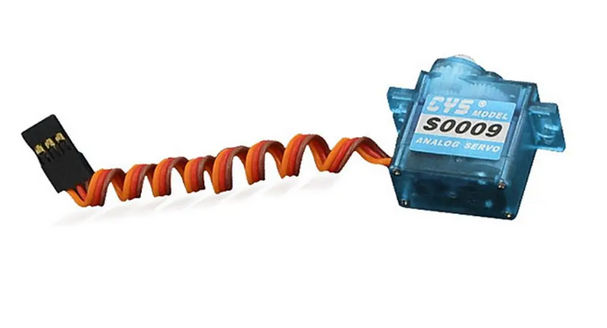

Item NO.: CYS-S0009 9g servo motor Description : 9g analog plastic gear servo 180deg / 360deg rotation servo Torque : 1.2Kg.cm to 1.5Kg.cm Speed : 0.12sec to 0.10sec/60 deg Voltage : 4.8 Volts to 6.0Volts Weight :9 plus/minus 1g
Specifications: Type Analog Weight 10g Size 22.3 x 11.8 x 26.3mm Control System (+)Pulse Width Control 1500 micro sec Neutral Operating Voltage 4.8 to 6.0Volts Operating Temperature Range -10 to 50 deg Celcius Operating Speed (4.8V) 0.12sec/60deg at no load Operating Speed (6.0V) 0.10sec/60deg at no load Stall Torque (4.8V) 1.2kg.cm Stall Torque (6.0V) 1.5kg.cm Operating Angle 45deg.one side pulse traveling 500 micro sec Direction Anticlockwise/Pulse Traveling 1000 to 2000 micro sec Current Drain (4.8V) 10mA/idle and 100mA no load operating Current Drain (6.0V) 10mA/idle and 120mA no load operating Stall Current 0.9A/1A Dead Band Width 4 micro sec Motor Type Iron core Horn gear spline 21T Gear Type Plastic Connector Wire Length 180mm Wire info Brown/Black = Negative Red = Positive Orange/White = Signal
