| PRODUCT DETAILS > > > SAVOX SG-0351 DIGITAL SERVO |
Savox SG-0351 Digital Servo (#SAVOX SG-0351 STD SERVO)
|
6.0V Speed: 0.17 Torque: 4.1kg
|
Price: R295
Weight: 45 grams
|
|
|
|
Product Details:
Savox SG-0351 - Standard Digital Servo .17/57 @6v
The SG-0351 is a standard digital servo with dual bearing support for increased precision and durability.
Features:
Industrial plastic gears provide smooth and quiet operation.
Higher value standard servo with dual ball bearing support.
Specifications:
Torque @4.8v - 3.2kg / 44.4oz-in
Torque @6v - 4.1kg / 56.9oz-in
Speed @4.8v - 0.22 sec/60 deg
Speed @6v - 0.17 sec/60 deg

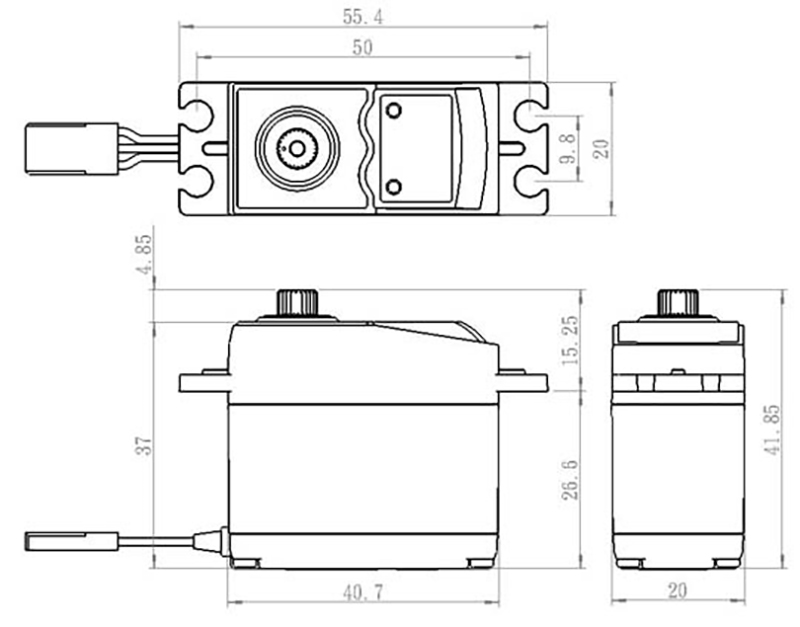

Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0
Weight: 41.0g
Technical Details:
Operating Temperature: -10 to 50 deg Celcius
Running Current (no load): 100mA @4.8V, 120mA @6.0V
Stall Current (at locked): 800mA @4.8V, 1000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 plus/minus 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120 deg (1000 to 2000 micro second)
Neutral Position: 1500 micro second
Pulse Width Range: 800 to 2200 micro second
Maximum Travel: Appx 164 deg (800 to 2200 micro second)
Refresh Rate: 240 Hz
Motor Type: Brushless
|
|
|
Click here to go back...
|
