  PRODUCT DETAILS > > > SAVOX SC-0252MG DIGITAL

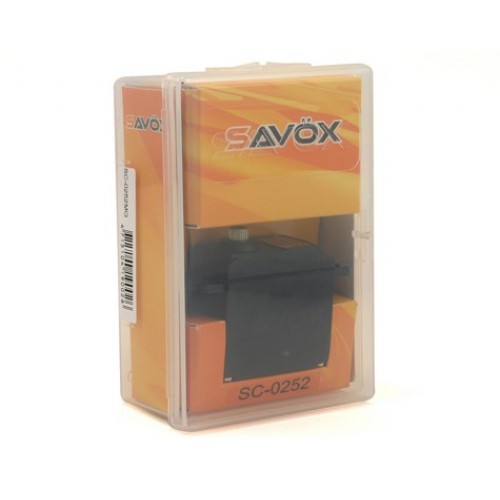

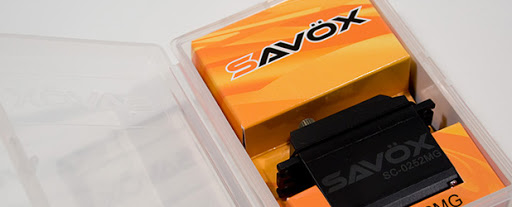

Savox SC-0252MG Digital (#SAVOX SC-0252 STD SERVO)

6.0V Speed: 0.19 Torque: 10.5kg




Price: R527

Weight: 50 grams



Product Details:

Savox SC-0252MG - Standard Digital Servo .19/145 @ 6.0V

The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.
Features:

    Metal gear train ensures durability under harsh situations.
    Higher torque output than standard servos.
    Ideal for 30-60 size aircraft, and some car applications.

Specifications:

    Torque @ 4.8v - 7.2kg / 100.0oz-in
    Torque @ 6v - 10.5kg / 145.8oz-in
    Speed @ 4.8v - 0.23 sec/60 deg
    Speed @ 6v - 0.19 sec/60 deg

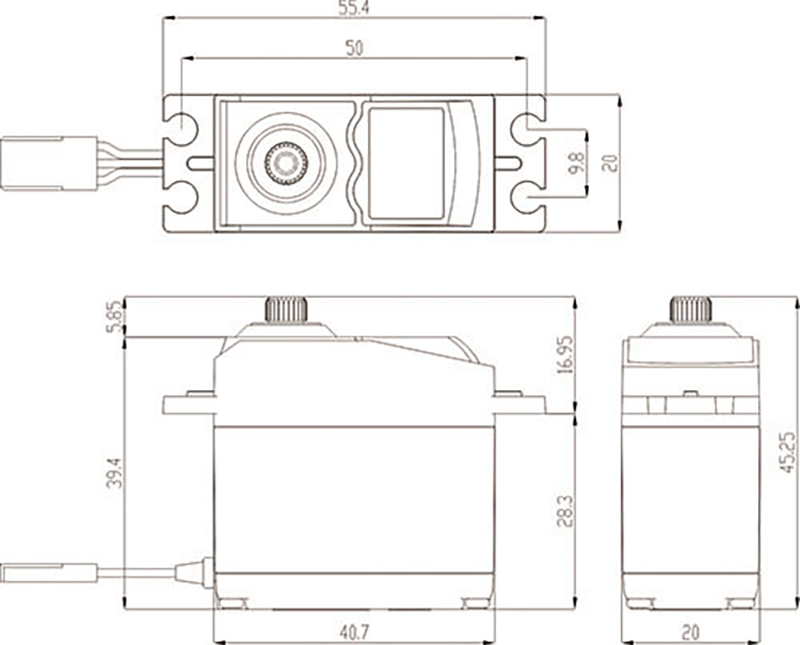

    Dimensions L x W x H (mm): 40.7 x 19.6 x 39.4
    Weight: 49.0g

Technical Details:

    Operating Temperature: -10 to 50 deg Celcius
    Running Current (no load): 300mA @4.8V, 330mA @6.0V
    Stall Current (at locked): 1400mA @4.8V, 1700mA @6.0V
    Idle Current: 6mA @4.8V, 6mA @6.0V
    Wire Length: 300 plus/minus 5mm
    Output Gear Spline: 25 Tooth
    Bearings: 2BB
    Operating Travel: 120 deg (1000 to 2000 micro second)
    Neutral Position: 1500 micro second
    Pulse Width Range: 800 to 2200 micro second
    Maximum Travel: Appx 164 deg (800 to 2200 micro second)
    Refresh Rate: 240 Hz
    Motor Type: Brushed





Click here to go back...
