PRODUCT DETAILS > > > ELECTRIC RETRACTS SET [2PC] W ECU - JP ER-005 90DEG.

Electric Retracts Set [2PC] W ecu - JP ER-005 90deg. (#JP RETRACT SET 90DEG)

For Models up to 6kg/ Low/ Inside Motor

Price: R2895

Weight: 150 grams

Product Details:

PLEASE NOTE: 1SET AVAILABLE AT REDUCED PRICE OF R2895 - USED ONCE - CONDITION 9.5/ 10 [The ECU is 100% new]

Specifications

Material: Aluminium
Struts diameter: 10mm
Pin Diameter Size: 5mm
For plane: up to 6 kg (possible 7-8kg)

Technical Specifications

Retracts weight: 2 x 62.8g
Control module box weight: 19g

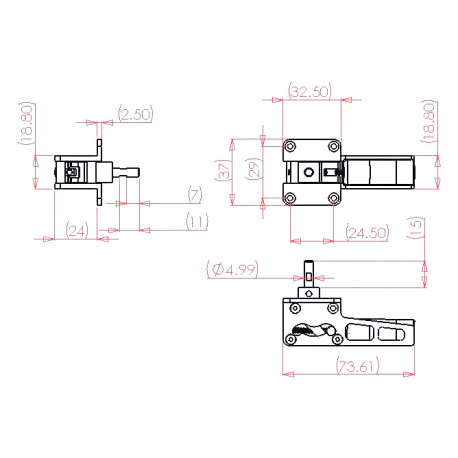

Retracts sizes: 26mm x 73mm x 18mm
Retracts mounting plate sizes: 33mm x 37mm
Control box sizes (option): 53mm x 32mm x 10mm
Length with motor: 74mm
Working Voltage: 5-6.4V
Speed: 5.2 sec (5v) - 4.3 sec (6v)

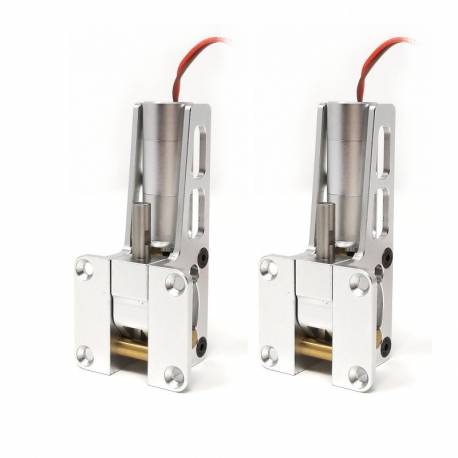

2x Main Retract JP Hobby ER-005 5mm units (6kg/Low/Inside)
1 x JP Retract Controller V1 ER-120

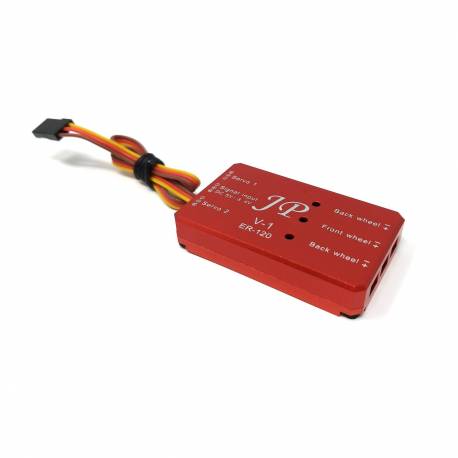

JP Hobby Tricycle Sequencer Retract Box ER-120 V1

This electronic switch is used to control the sequence of electric retract from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts. Note : Version 2 closes the doors when the gear is down while version 1 keep the doors open.

Connections

Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism [NOT SUPPLIED] to the "front wheel" plug

Connect the doors servos to the "Servo 1" and "Servo 2" plugs

Connect the "signal input / DC 6V" wire and plug to your receiver "gear" channel
