JP Hobby ER-005 5mm 84� electric main retract for 10mm oleo struts for models up to 6kg (Mounting position Low and jack side rotation)

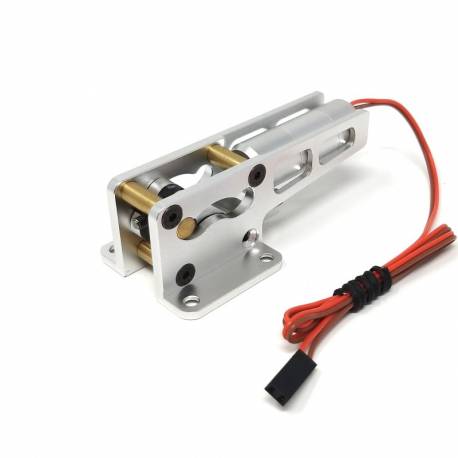

Electric 100% CNC aluminium main retract for planes up to 6kg for JP Hobby oleo struts ER-005 or equivalent with a 6mm diameter in the upper part. 85% inside rotation angle (jack side) and mounting position Low.

Note: These Allow retracts are provided for the oleo strut ER-005 or equivalent with a 6mm diameter in the upper part.

Specifications

• Material: Aluminium
• Struts diameter: 10mm
• Pin Diameter Size: 6mm
• For plane: up to 6 kg (possible 7-8kg)

Technical Specifications

• Retractation angle: 85�
• Retract weight: 63g
• Retract sizes: 26mm x 73mm x 18mm
• Retract mounting plate sizes: 33mm x 37mm
• Length with motor: 74mm
• Working Voltage:  5-6.4V
• Speed: 5.2 sec (5v) - 4.3 sec (6v)

Contents

• 2x Main Retract JP Hobby ER-005 6mm unit (6kg/Low/Inside)

JP Hobby Tricycle Sequencer Retract Box ER-120 V1

This electronic switch is used to control the sequence of electric retract from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts. Note : Version 2 closes the doors when the gear is down while version 1 keep the doors open.

Connections

Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism [NOT SUPPLIED] to the "front wheel" plug

Connect the doors servos to the "Servo 1" and "Servo 2" plugs

Connect the "signal input / DC 6V" wire and plug to your receiver "gear" channel

Specifications

• Input voltage: 5V to 7.2V
• Size: 52 x 32 x 10 mm
• Weight: 22 gr
