RCGF Stinger 20cc RE
Glow size gasoline economy & ease!
Glow power isnt the only option anymore. The NEW STINGER 20CC RE engine not only fills the displacement gap, but includes a beam mount to make the glow-to gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.

NEW STINGER 20cc RE is starting ease and top performance make the 20CC RE an attractive alternative to glow and a solid buy for value and performance.

Parameter

1.      Carburetor : Walbro

2.      Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)

3.      SPARK PLUG: NGK-CM6 type

4.      Requires: Gasoline, 2-cycle oil, ignition battery & propeller

5.      speed rang : 1500-10800rpm

6.      Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)

7.      Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .

8.      Break in Propeller : 16X8 (Standard Two leafs prop)

9.      Cooling System : Air Cooled

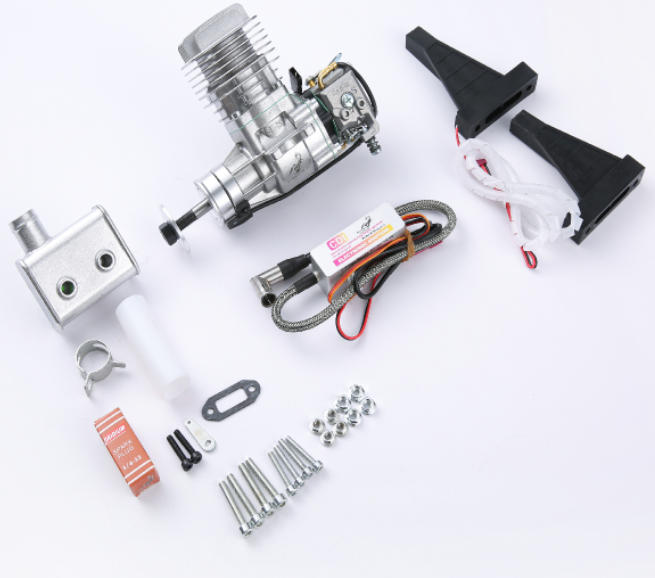

10.   RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:

1.      Engine: 1.37 lb (620g)

2.      Muffler: 2.08 oz (59 g)

3.      Ignition Module: 4.4 oz (125 g)

4.      Total: Weight: 1.75 lb (795 g)

Technical Data:

1.      Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack

2.      Gasoline/Oil Mix: 30:1

3.      Replacement Spark Plug: NGK-CM6 or equivalent

4.      Idle Speed: 1800 rpm/min
