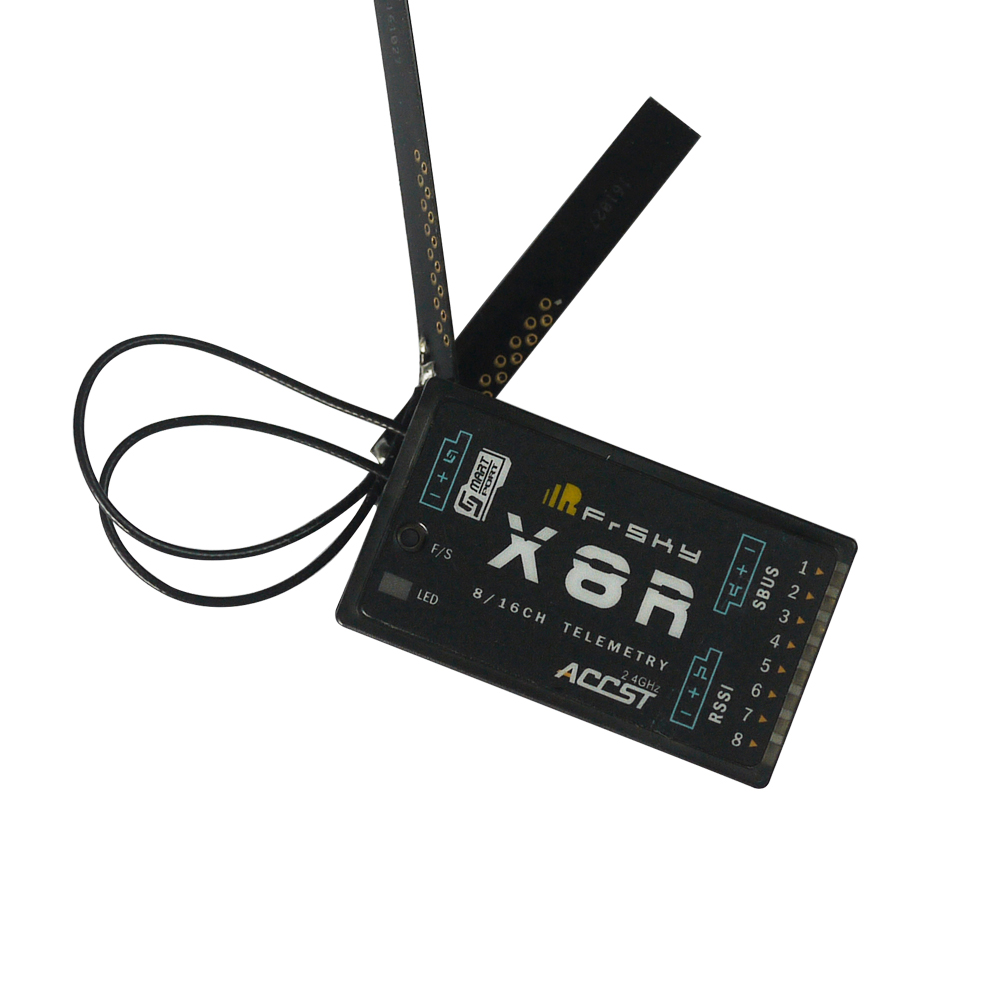

The X8R is in a Smaller package than previous 8 channel receivers but has so much more capability. The new SmartPort supports the new hub-less sensors as well as the older hub analog sensors.The X8R supports 8 standard servo outputs, and you can access all 16 channels by using the Sbus line with Sbus supported servos or use a FrSky S.BUS Decoder for the full 16 channels. Or you can use 2 X8R receivers in combination and the channels will sync 1-8 on the first and 9-16 on the second.The X8 protocol is also backward compatible! In D8 mode it works with the DHT, DJT, DFT and DHT-U transmitter modules.
FrSky DFT/DJT/DHT/DHT-U in D_mode FrSky Taranis X9D/XJT in D8 mode FrSky Taranis X9D/XJT in D16 mode |
|
Firmware Upgradable | Y |
Weight | 16.6g |
Case | 46.25 x 26.6 x 14.2mm (L x W x H) |
Operating Range | full range (>1.5km) |
Operating Voltage Range | 4.0~10V |
Operating Current | 100mA@5V |
Number of Channels | 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port Or combine two X8R to become a 16 channels receiver) |
