Savox SA-1256TG - Standard Size Coreless Digital Servo .15/277 (Minimized Backlash)
The SA-1256TG servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes. Features:
Titanium gears ensure long life,durability, and lighter weight. Minimized backlash for precision aerobatic air plane use. Aluminium middle case to help with cooler operating temperatures.
Specifications:

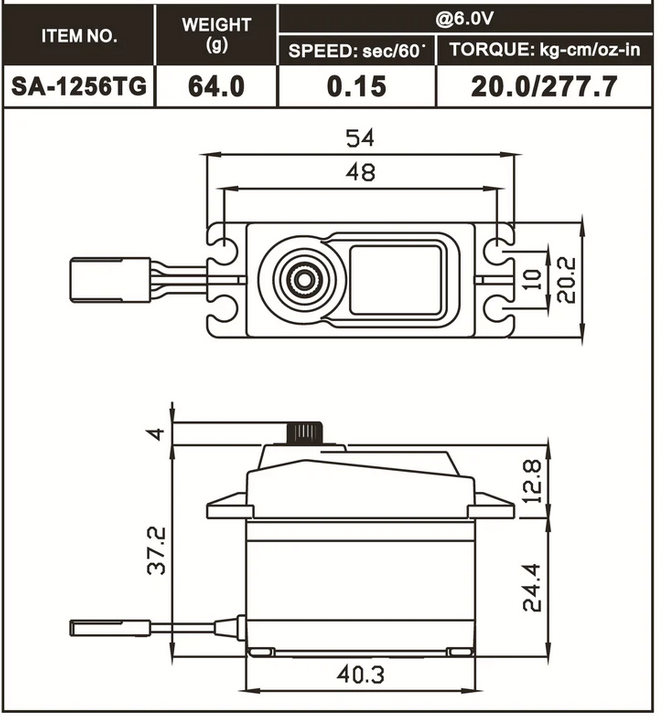

Torque @ 4.8v - 16.0kg / 222.2oz-in Torque @ 6v - 20.0kg / 277.7oz-in Speed @ 4.8v - 0.18 sec/60 deg Speed @ 6v - 0.15 sec/60 deg Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2 Weight: 52.4g
Technical Details:
Operating Temperature: -10 to 50 deg Celcius Running Current (no load): 100mA @4.8V, 120mA @6.0V Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 200 plus/minus 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100 deg (1000 to 2000 micro second) Neutral Position: 1500 micro second Pulse Width Range: 800 to 2200 micro second Maximum Travel: Appx 130 deg (900 to 2100 micro second) Refresh Rate: 333 Hz Motor Type: Coreless
