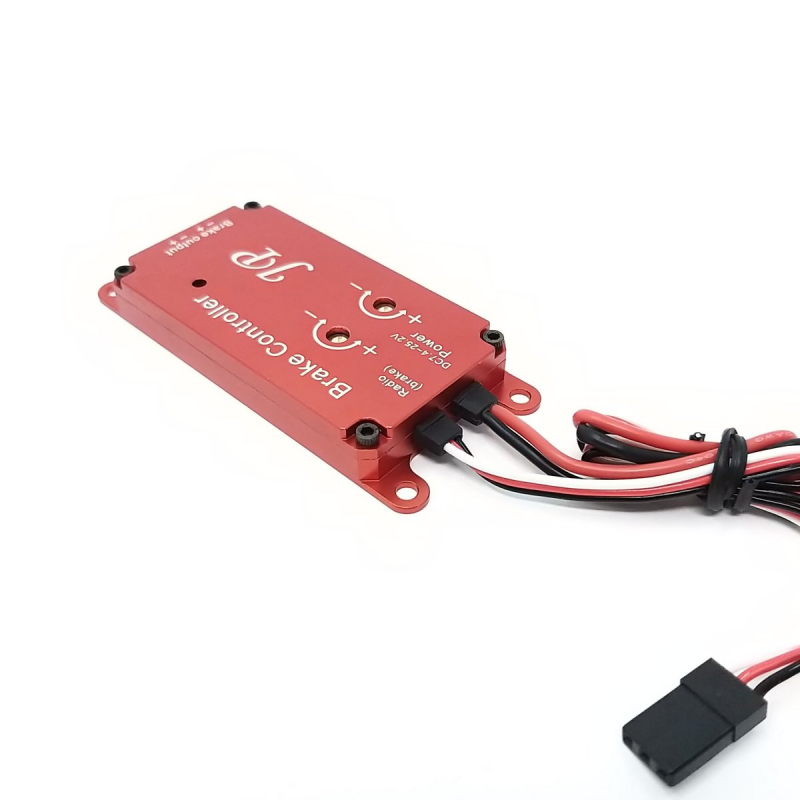

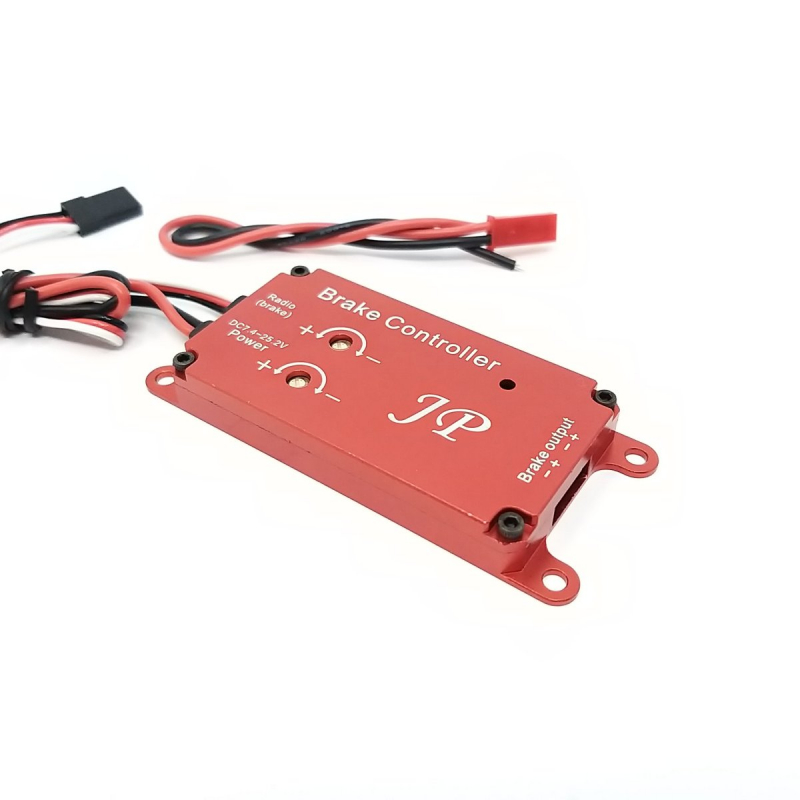

Electrical Magnetic Brake Controller for JP Hobby magnetic brake systems with braking force controlled independantly Left / Right
Description

Electrical Magnetic Brake Controller for JP Hobby magnetic brake systems. This is the same controller that is included with JP Hobby Electric Wheel and Brake Sets.
JP E-Brake Using illustration

Voltage input : 2S-6S Can tap directly on aircraft batteries Or use an external battery 2S-6S
Voltage output: 6-10V
Signal input : Connect the module on your receiver on a 2 or 3 position switch channel or for variable braking force, to a slider or rotary (variable) knob on your TX. Some will set up brakes as a mix, with the "down elevator" to save a channel.
The braking force is controlled independantly Left / Right by the servo travel/endpoints you set in your TX.

Specifications

Input：7.4v~25.2v (2~6S lipo)
Output Voltage: 6~10V
Size: 75 x 33 x 10mm
Weight: 32g

click type potentiometer eg. set to position 1,2,3 etc.
