  PRODUCT DETAILS > > > KST X10 MINI V8.0 DIGI MG 7.5KG 0.1SEC
KST X10 Mini V8.0 Digi MG 7.5kg 0.1sec (#KST X10 MINI)

High end quality Servo




Price: R1495

Weight: 23 grams



Product Details:

A smaller version of the X10 wing servo from KST offers the best performance and definitely the best value servo you can put in your latest sailplane wing.
 This HV servo has incredible torque and extremely smooth operations rivaling and beating servos twice its price.

The Mini version is lighter and smaller than the regular KST X10
 perfect for installations where a small amount of torque can be traded for lighter weight and ease of installation.

Perfect for applications like F3J, F3B, F3F wing and flap installations.
You need to see it and feel how smooth it goes... its just awesome.


Extreme Torque and Excellent Speed
Compact and Light Weight Design
Wide 4S NiMH to 2S LiPo Voltage Range
Programmable
Excellent Heat Dissipation
CNC Aluminum Case
Hardened Steel Gears

Specification

Item: X10 Mini V8.0 Servo
Rated Voltage: DC7.4V
Voltage Range: 4.8V-8.4V

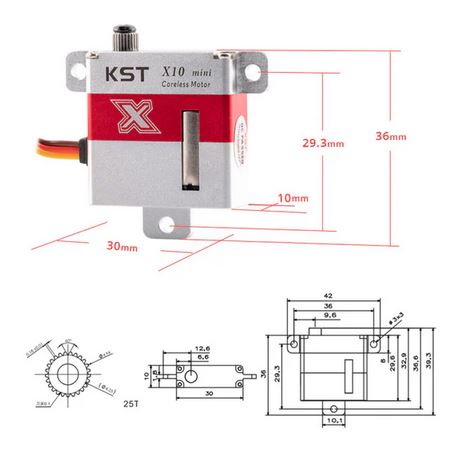

Dimensions: 30mmx10mmx29.6mm +-0.2mm
Max dimensions:42.0x10.0x39.0mm
Torque: 4.5Kgf.cm@4.8V, 5.5Kgf.cm@6.0V, 6.8Kgf.cm@7.4V, 7.5Kgf.cm@8.4V
Speed: 0.16sec/60 @4.8V,  0.14sec/60 @6.0V,  0.12sec/60@7.4V,  0.10 sec/60@8.4V

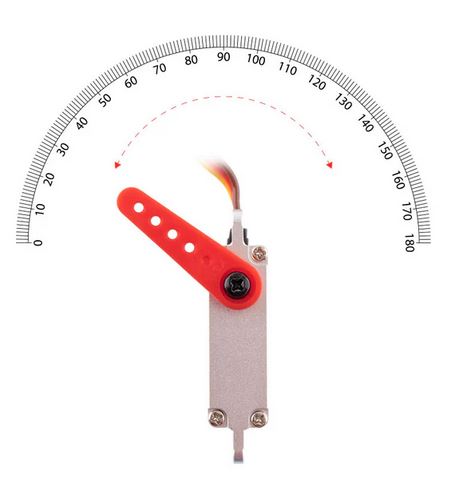

Travel Angle: 50=100 Total
Operating temperature: -10deg c.......+65deg c
Weight: 23g +-10
Gear material: Hardened Steel
Motor Type:  Coreless DC Motor
Case Material: Aluminum Alloy
Working frequency: 1520us/333Hz
Soft Start: Programmable
Programmable: Yes
Position feedback: Potentiometer
Dead band/resolution: 2 us
Pulse width for +- 60deg 900-2100 us
Lead length: 16cm
Bearing: 2BB

Need more than we have in stock? no problem. pre-orders take 14 days for delivery after confirming orders. contact us for more info
