  PRODUCT DETAILS > > > KST X10 V8.0 DIGI MG SERVO 10.8KG 0.10SEC

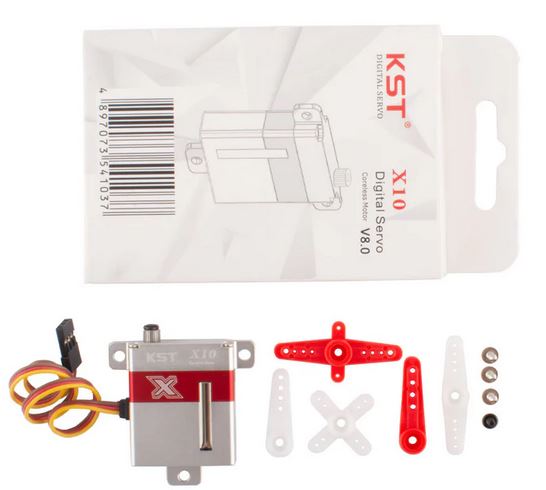

KST X10 V8.0 Digi MG Servo 10.8kg 0.10sec (#KST X10 V8.0)

PRE-ORDER ETA 14 days




Price: R1595

Weight: 28 grams



Product Details:

The newest wing servo from KST offers the best performance and definitely the best value servo you can put in your latest sailplane wing.
This HV servo has incredible torque and extremely smooth operations rivaling and beating servos twice its price.

Perfect for applications like F3J, F3B, F3F wing and flap installations.
 You need to see it and feel how smooth it goes... its just awesome.

Compact and Lightweight Design
Extreme Torque and Excellent Speed
Excellent Heat Dissipation
Programmable
CNC Aluminum Case

Specification

Item: X10 V8.0 Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque: 6.2Kgf.cm@4.8V,  7.5Kgf.cm@6.0V, 9.5Kgf.cm@7.4V, 10.8Kgf.cm@8.4V
Speed: 0.16sec/60deg @4.8V,  0.14sec/60deg @6.0V, 0.12sec/60deg @7.4V,  0.10sec/60 deg@8.4V
Working Frequency: 1520us/333Hz

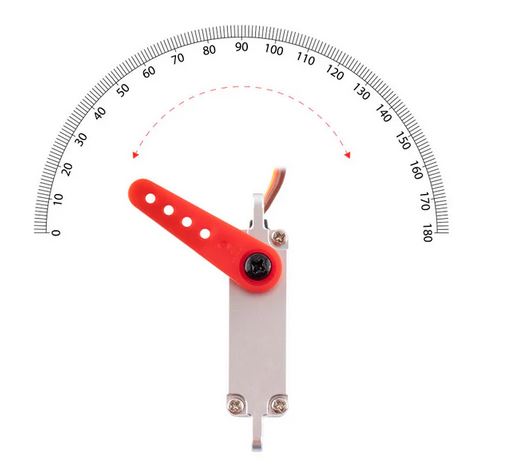

Travel Angle: ±50 to 100 Total
Temperature Range: -10 to +65 deg
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Lead length: 15cm
Bearing: 2BB
Gear Set Material: Hardened Steel
Motor Type: Coreless DC Motor
Position Sensor: Potentiometer

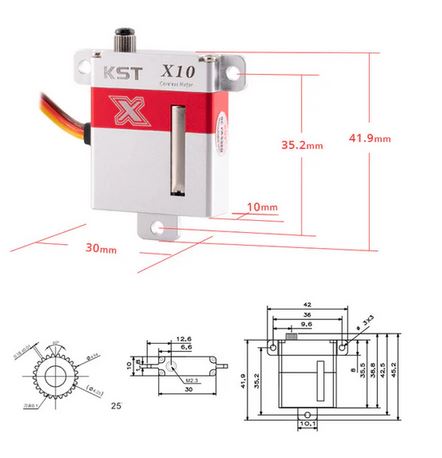

Case Dimensions: 30*10*35.5mm ±0.2mm
Weight: 28g +-10%
