Product Details:
Its HERE! and we are extremely proud and excited to offer the Amazing High Quality Carbon Fibre JEEMO Jet glider - Made in Italy
Experience the thrill and exhilaration of Jet Power in a Docile graceful flying Jet Glider or push that Stick forward and unleash a +300kph Aerobatic Machine!
THIS ITEM IS IN STOCK AND READY TO SHIP FROM CAPE TOWN NOW in the Red/ Carbon Fibre "88" Scheme!!
The first and the only one Glider Jet with an integrated turbine inside the model engineered to be an almost ready to fly kit.
The Jeemo is designed to host only two precise models of turbine: the Kingtech K-45G3/G4 and the Xicoy X45 - although it also been flown with a K30 (by Ali/ Zavi Machinchy - see our Facebook posts)
For this reasons, it can be easily assembled and ready to fly in approximately in 10 days of work.
Jeemo is produced in only one layout, Fast Slope (FS), applying their latest EXTRALIGHT TECHNOLOGY.
The kit will be provided with everything which is required for the installation of both turbines. Please note: push rods and clevices not included from manufacturer

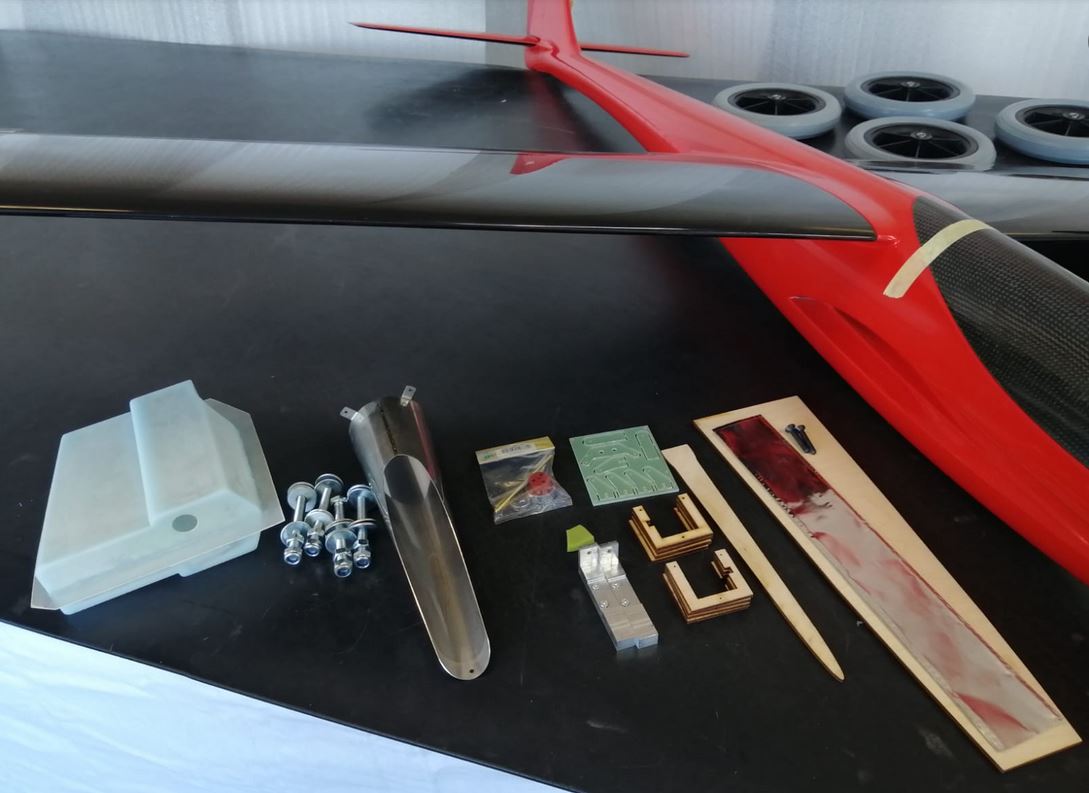

More precisely, the kit includes:
Full Carbon Fibre Wings, Rear Horizontal Stabilizer and 80% of Fuselage construction (nose section is Fibreglass so there is no interference for electronics)
Plywood gas turbine support glued directly in the mould;
CNC Gas turbine rails with correct incidence; Fuel tank rails;
Dedicated fuel tank;
Turbine exhaust pipe that will provide correct contact with the fuselage;
Plywood servo supports for wings servos;
High quality CNC milled wood for receiver (RX), battery and gas turbine control board;
Carbon fibre canopy ready to be installed;
Glass fibre CNC milled wing and tails control horns.
16mm solid Stainless Steel Wing Tube
Andys Folienwelt Vinyl Kit - This Red/ Carbon Kit has the Silver Vinyl Kit with the number "88"
Specs:
Wing span: 3200mm
Wing area: 77 dm2
Fuselage length: 1700mm
Weight (FS, extralight tech.): 7,5kg
Wing load (FS, extralight tech.): 97g/dm2
Wing airfoil:n/a
Mod. HN 163 TA
Suggested Servo Setup:
Elevator: KST A12 12 mm
Rudder: KST A12 12 mm
Ailerons: KST A12 12 mm
Flaps: KST A12 12 mm
Required: Power: Kingtech K45G3/ G4+/ K30 or Xicoy X45
Servos: 6 x KST Wing Servos 7 - 7.5kg or similar Batteries: RX Lipo 7.4v or Li-Fe 6.6V + 3S Li-Fe 3800mah XPower for Turbine (K-45G4)
6 x 2.5mm Pushrods + 12 x clevices (we recommend Sullivan Gold Clevices AS526 4-40 & DU-BRO Threaded Pushrods 4-40 ADB0379)
1 x Sticks Like Sh*t glue for all Plyood Servo Mounts/ Component Trays + SPABOND 440 FAST for all Horns (Epoxy not recommended)
Additionally from us:
1. JEEMO IMAGE FOR FRSKY USERS: We have requested the Jeemo image for Frsky TX users and it is now available for download from Skyraccoon which can be found here:
https://www.skyraccoon.com/aircraft/glider_it_jeemo_jeemo-or#radio
2. JEEMO DOLLEY: For info on the Dolley, pls contact us. The 20kg steering servo is IN STOCK NOW!
Jeemos can be hand-launched too! see below
3. SERVOS: KST X10 7.5kg@6v servos can be pre-ordered from us - ETA 2 weeks or KST DS125MG 7kg@6v servos ARE IN STOCK NOW!
4. HOPPER/ AIR TRAP TANK: 60ml available from us @ R1240
5. ACCESSORIES: Well also supply you with additional self adhesive strips of Foil insulation (for Tailpipe heat) and thick high gloss Carbon Fibre tape preventing damage to Fuselage and wingtips when landing - these are free of charge. Alternatively 3D printed self-adhesive nose, tail and wingtip guards are available on request @ R295/ 3pc set
6. WING BAGS & TRANSPORT STAND: Custom made Foil Insulated Wing Bags with JEEMO Logo + Zip @ R1495/ set (and if required, your name/ additional image/ logo optional extra)
Custom made Transport/ Storage Foam stand available on request @ R795
Call us, were here to help!
check out this unique high speed ultra strong glider here: https://www.youtube.com/watch?v=JEpvI0Ojal0
Jeemos can be hand-launched too! Watch it here: https://www.youtube.com/watch?v=onzOPpYRpGQ
A step by step build thread of pics/ videos/ tips and maiden flight on our Facebook Page coming soon..
Standard colours are: RED/ Green/ Orange/ Blue with Solid Black Colour (90% of kit is Carbon Fibre Construction)
Custom Carbon colour schemes are available
These kits are not off the shelf items, they are custom made per order. Production time is 30-45 days after order confirmation
note: a small seam line 0.8mm is visible on top and bottom of fuselage. This is normal due to the Fuselage being painted in the mold. "Deluxe" fuselage option is available at an additional cost where the seam line is repainted after the molding process so that the seam line is invisible.
|
