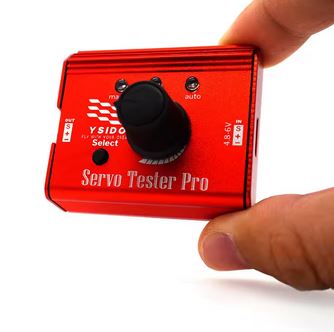

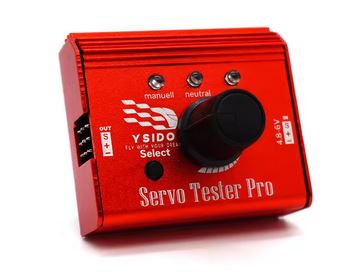

Universal RC Model Parts Servo or ESC Metal Tester ESC Checker Master 3-modes 4.8-6.0V For RC Plane Car Boat Drone Servo Tester
Feature: 1. There are three modes to detect servo or ESC Manual mode: You can turn the potentiometer at different speeds to measure the response time Find Neutral Mode: Return the servos to the neutral point Automatic two-brush mode: two-brush swing of the servo at the maximum angle 2. It can connect 1-3 servos at the same time, test the synchronization and consistency of 1-3 servos, etc. 3. You can connect 1-3 ESCs at the same time, test and compare their response times 4. It can connect the 3 servos of the CCPM structure helicopter at the same time, and use the neutral position and synchronization functions to debug the helicopter and screen the servos 5. It can be connected to the steering gear on the fixed-wing aircraft, and use the neutral position and other functions to install the steering wheel and debug the aircraft 6. It can easily detect and set the virtual position, jitter and neutral position of the server. It can be connected to two sets of servos or ESCs; it is controlled by a single-chip microcomputer, with good stability and high precision. Turn the knob to detect the servo 7. If you connect the electronic governor (with or without brush); you can get rid of the remote control device for manual speed regulation, which is very practical for testing the performance of the governor or motor, and you dont need to tediously connect the remote control and receiver. . 8. It is equivalent to a "manual receiver" function, which simulates the rudder of the transmitter through the knob 9.100% Brand new and high quality!
Instructions: Connect 3 sets of upper, middle and lower servos to test 3 servos at the same time.When the power input terminal is connected to the power supply, the three blue lights will light up at the same time, and then the left light will light up. At this time, three modes can be selected through the mode. When the left light is on, it is the manual adjustment mode, and the potentiometer can be used directly. (and the adjustment knob) to control the rotation of the servo; then press the button, the middle light will be on, this is the center test; press the button again, the light on the right will be on, which is an automatic test, the servo will keep rotating, the card After death, rotate in the opposite direction, and cycle in turn. The connection method of the test ESC is the same as that of the steering gear. When testing the motor, you need to connect the ESC first. The methods are all according to the above steps.
Note: The positive and negative poles of the power supply cannot be reversed, if the reverse connection will burn the IC
