Product Details:
2pc Male/ Female Set 6pin Connectors only - no wires attached

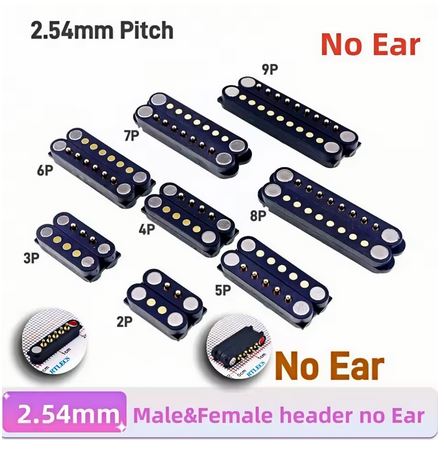

Waterproof DC Magnetic Pogo Pin Connector 2 3 4 5 6 7 8 9 Poles 2.54 MM
Pogopin Male Female Contact Strip
Female 2.54 MM Spring Loaded
DC Power Socket JST 1.25MM
Female Pad waterproof IPx4

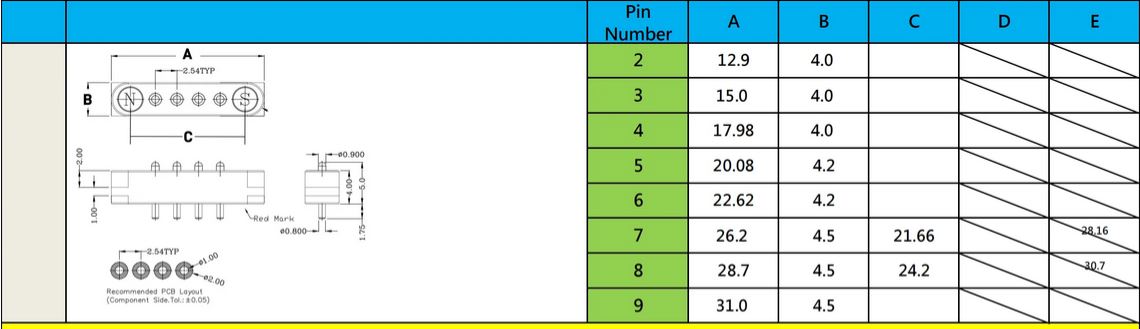

DIMS:
Brand Name
RTLECS
Voltage: 36 V
Certification: RoHS
Product Family: Magnet Spring-Loaded connector Pogo Pin
Maximum Current: 2A
Mount Type:Through Hole Solder Mount
Body/Plunger Material: Co upper Alloy
Plating: Gold over Nickel
Pitch: 0.100"/2.54mm
Durability: 20000 cycles Min
Uses: Servo connections/ Wing connections - DO NOT MOUNT
|
