  PRODUCT DETAILS > SPEED CONTROLLERS > > YEP ESC PROGRAMMING CARD
Yep ESC Programming card (#PROGCARD-YEP)

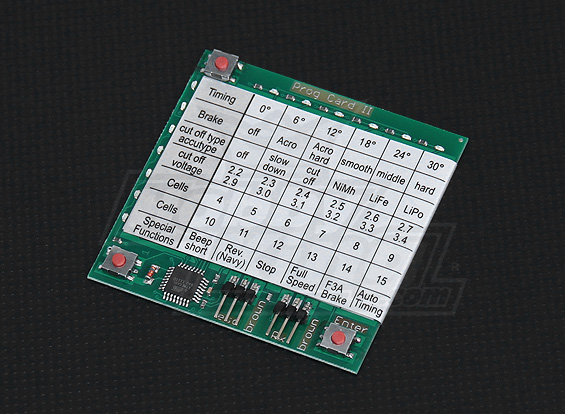

Hobbyking YEP ESC Programming Card




Price: R225

Weight: 20 grams



Product Details:

This is the programming card for the Hobbyking YEP ESCs. This card will allow you to conveniently program your ESC settings at home or at the field. Its compact size allows it to be stored in your field box or pocket with ease.

Programming Options:
 Active free-wheeling circuit mode: Freew. off/Freew. on
 Govenor mode: Gov. off/Gov. store/Gov./fast Gov.
 Govenor mode P-gain: 0.7/0.9/1.2/1.4/1.6/1.9
 Govenor mode I-gain: 0.02/0.03/0.05/0.06/0.08/0.09
 Startup speed: Heli slow/Heli middle/Heli fast/Plane slow/Plane middle/Plane fast
 PWM frequency: 8kHz/9kHz/10kHz/12kHz/14kHz/16kHz
 Start-up power: Auto 1~32%/2%/4%/8%/16%/32%
 Motor timing: 0/6/12/16/24/30
 Brake: off/Acro/Acro hard/smooth/middle/hard
 Cut-off type: off/slow down/cut-off/NiMh/LiFe/LiPo
replica handbags
 Cut-off voltage (LiFe mode): 2.2/2.3/2.4/2.5/2.6/2.7
 Cut-off voltage (LiPo mode): 2.9/3.0/3.1/3.2/3.3/3.4
 Cells: 4/5/6/7/8/9
 Cells: 10/11/12/13/14/15
 Special functions: Beep short/Rev./Stop/Full speed/F3A brake/Auto timing


*Note:
 This programming card only works with the Hobbyking YEP ESCs (45A/80A/100A/120A HV)
