  PRODUCT DETAILS > CHARGERS/ TESTERS > > PARALLEL BALANCE BOARD

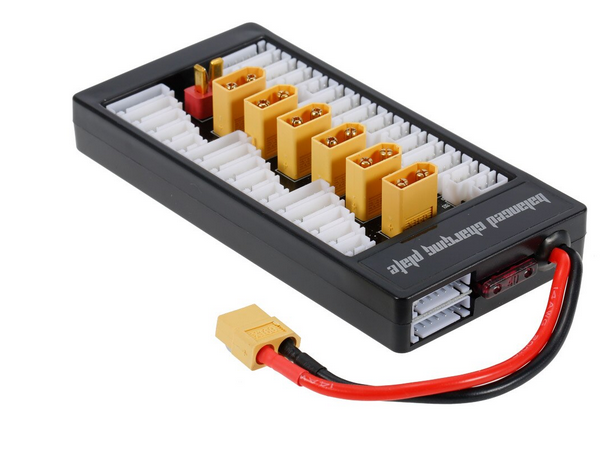

Parallel Balance Board (#PARA BOARD)

Parallel Balance Charging Board 80A 2s-6s




Price: R480

Weight: 80 grams



Product Details:

Description :
1. Our parallel charge boards allow you to charge and balance up to six battery packs simultaneously without a clutter of wires. Constructed from the highest quality materials, they give you the best connection possible every time you charge your batteries.
2. The board has already wired in parallel, all you need to do is plug your batteries charge and balance connectors to the board - ensuring that all the batteries are the same cell count. Each board can charge up to six batteries, from 2S up to 6S, at up to a 30A charge rate.
3:parallel  charging board For lipo  balance charger, Such as icharger 106, 206b, Imax B6 B8  B6AC,UNA6,and  other  balance chargers

Specifications:

Charge Input Connectors: XT60 x 6 + 1 x Dean/ T-style
Balance Input Connectors: Female JST-XH (2S-6S)
Charge Output Connector: Male 4mm Banana Plug
Balance Output Connector: Male JST-XH (6S)
Wire Type: 12 AWG Silicone
Wire Length: 8"
Board Dimensions: 140x68x17mm

Features:
1.It can protect the charging batteries when short circuit happens.
2.It can support combined use for three parallel charging boards
3.It has 20Z-thick copper foil,so it can withstand continual current of 80A.
4.It can prevent each cell overcharge,so it can improve the balance efficiency.And the later period of the balance charging cycle is shorted substantially.

Packing Include:
XT60 balance charging board *1Set

PCRC Note: tried and tested - makes parallel charging a breeze!
