1  Specification

1.1 Output:  Continuous 120A, burst 180A up to 10 seconds.

1.2 Input Voltage:  5-12 cells lithium battery or 15-36 cells NiMH battery.

1.3 BEC:  None.

1.4 Refresh rate of the throttle signal: 50Hz to 432Hz.

1.5 Control Signal Transmission: Optical/electrical coupled system.

1.6 Max Speed:  210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.

      (BLM = BrushLess Motor)

1.7 Size:  88mm (L) * 55mm (W) * 15mm (H).

1.8 Weight:  125g.



2  Features

2.1 High performance microprocessor, best compatibility with all kinds of motors, highest driving efficiency.

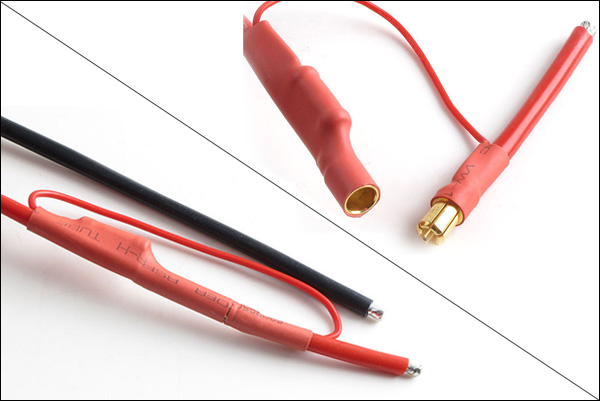

2.2 Anti-spark circuit eliminates sparks when the battery pack is connecting with the ESC.

2.3 Three types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.

2.4 Smooth, linear, quick and precise throttle response.

2.5 Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.

2.6 The throttle signal is transferred through optical/electrical coupled system to avoid electromagnetic interference.

2.7 Perfect governor mode for helicopter.

2.8  Wide-opened heat-sink has the best heat dissipation effect.

2.9 The firmware of the ESC can be updated through the built-in USB adapter in the Professional LCD Program Box.

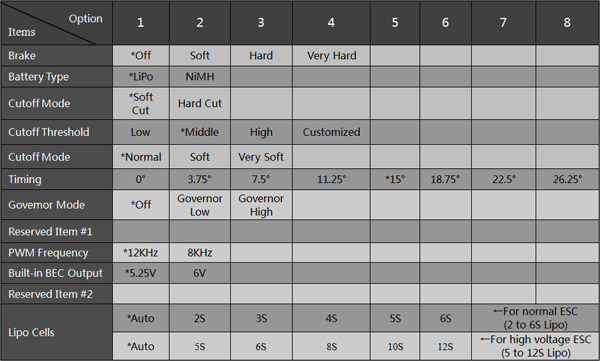

2.10 User programmable.

2.11 Multiple program methods supported: transmitter stick, Digital LED Program Card, Multi function LCD Program Box, Professional LCD Program Box, PC software. Very easy to program the ESC at home or at the flying field.
