  PRODUCT DETAILS > > > HK YEP 18A

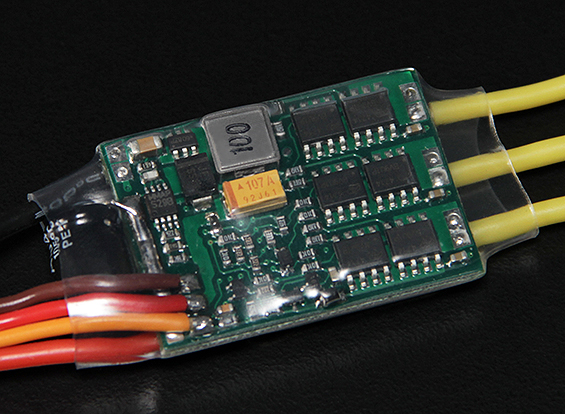

HK YEP 18A (#ESC HK YEP 18A)

18A (2~4S) SBEC Brushless ESC




Price: R260

Weight: 25 grams



Product Details:

We are now proud to offer our Hobbyking YEP ESC series. With helicopter specific programming options such as super smooth soft start, fixed RPM mode (governor mode) and ultra high resolution, you wont find a better helicopter ESC on the market today!

We have tested these units on our own helicopters and found them to be among the best we have ever seen. The super smooth soft start, along with its ultra high resolution throttle response puts this ESC in a class of its own!

The YEP series ESCs not only offer excellent performance for helicopters, they are also well suited for fixed-wing use with a whole host of programmable features.

Hobbyking YEP ESCs are built with the highest quality components to ensure true-to-rating current handling and high efficiency operation.

All Hobbyking YEP ESCs can be programmed via optional programing card or by transmitter stick inputs.

Features:
 Powerful 5.5V/4A Switching BEC
 Optional programming card for convenient setup
 Super fine throttle resolution provides first-rate and highly accurate linearity
 Super smooth adjustable start-up mode
 Constant RPM mode (governor mode)
 Adjustable F3A brake.
 3 steps adjustable normal EMF brake
 High anti-interference capability
 Low voltage cut-off protection with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
 Soft cut-off option at low voltage, slows motor RPM gradual rather than hard cutoff (LVC)
 Low voltage cut-off can be disabled
 Variable cut-off voltage / cell
 Active free-wheeling circuit allows for unlimited "partial load" capability
 LED status display
 Adjustable motor timing from 0 to 30
 Blocked rotation protection (senses a jammed motor and stops motor rotation)
 Motor reversing from ESC (no need to change ESC/motor wires)
 Over-temperature protection and overload alarm
 Throttle signal lose protection. If the signal is lost for 3 seconds, the power will automatically cut-off.
 Safe power-on. (Motor will not start until throttle is returned to lowest position)


***This ESC is compatible with both helicopter and airplane models.***


Specification:
Max Cont Current: 18A
Max Burst Current: 20A for 10 seconds
Input Voltage: 2-4 cells li-XX or 6-12 Ni-MH/Ni-Cd battery
BEC: 5.5V/4A Switching BEC
PWM: 8~16 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
PCB Size: 34x24x9mm
Weight: 22g (including wires)
