Recommended: Kingtech K-45 Gen 1/ Gen 2
It features a fully composite fuselage and wing with retract hard points pre-installed in the nose and retract hatches pre-cut in the wing.
This model comes completely pre-painted with decals applied and protected by a clear Gel coat, hatches are pre-assembled.
This model is truly the best priced ARF Jet around which you can get with all the hard work done for you.
Carbon fibre re-inforced
Assembly time - aprox. 3-4 weeks
Contents:
Fully painted composite fuselage
Pre-installed inlet ducting
Clear canopy with pre-installed hinge
Fully painted composite wing with ailerons and flaps
Exhaust ducting sheet, small parts, hardware pack & gear door covers.
Ailerons, Elevators and flaps are all PRE-HINGED

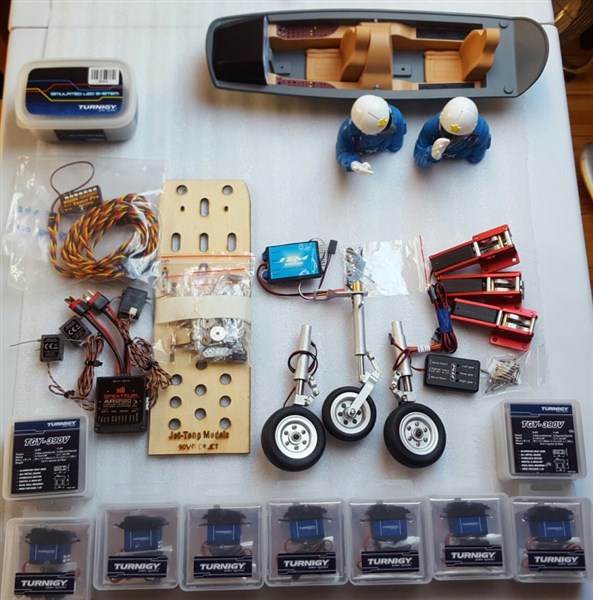

Included:
CNC Machined Oleo Struts [3] + scale wheels cnc machined hubs with rubber tyres [Michelin front/ Goodyear Mains] and equipped with Electric Braking system [ecu included. [7.4v]
CNC Quality Electric Retract system 90 size + Controller [7.4v] [max load 7kg] - set of 3
RC functions:
Ailerons
Elevator
Throttle
Flaps
Rudder
Gear
Nose gear steering
Gear doors - Main and Nose
Specifications:
Type: ARF
Material: Composite with Carbon Fibre reinforcement
Wing Span: 1410mm (55.5)
Length: 1280mm (50.5)
Airframe Weight.: 2050g [excl. retracts and oleos]

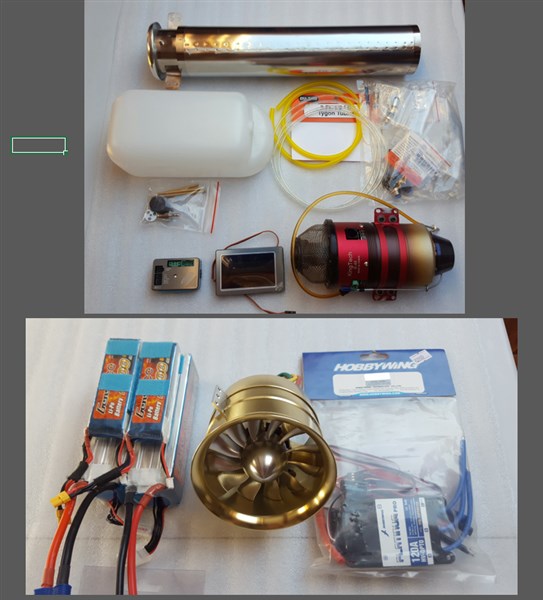

Needed to complete:
Electric Power EDF: 90mm [see our range of 12 blade high performance CNC EDFs]
ESC: 120a HV 8s or similar [see 120a Hobbywing Platinum HV OPTO ESC]
UBEC: 10-20a [see our UBECs]
OR
Turbine Power: 4-6kg [Kingtech K-45 is more than sufficient
Dual wall inconel Thrust tube: Available seperately R1550 [see Jet Accessories]
Servos: 9 Park size Servos [see our Turnigy 390v DIGITAL CORELESS MG Park size Servos]
Receiver:Min 9 Channel - Recommended 12 Channel [Spektrum AR12120 w Powersafe] - view our Receivers
Batteries: [see Battery section]
Extension Leads: [see HD Twisted Servo leads]
Accessories: Servo clips, tidy clips, Gear door actuators and sequencer, lighting kits, 90mm led thrust after burner, viper cockpit, pilots etc. VIEW OUR JET ACCESSORIES Section
This is a High end quality product with a superb detailed finish made by Jet Teng Models Ltd.
Feel free to contact us for more info.
More pics here: www.jtmjets.co.za
Build pics/ videos here: https://www.facebook.com/planecrazyrc
The Viper jet is an excellent choice for pilots looking to progress into the world of RC Jets [turbine or edf] They are perfect beginner/ trainer jets with stunning good looks.
Their solid construction, stable flight characteristics and price make them the perfect option for pilots looking to experience the exhilaration of RC jets!
Also available on request is the Plane Crazy RC JTM 90 Viper Build Manual:
An extensive One of a kind Build/ Assembly Manual covering EVERYTHING for both EDF and Turbine Versions. The Manual Includes:
- 67
pages [+16 500 words] of clear and concise English compiled by Sheraaz
[Owner PCRC] who has meticulously assembled both EDF and the Turbine
Versions of the 90 VipeJet
- 153 HD colour pics
- Everything is explained - easy to follow and understand - from the novice to expert Jet Builder
- 25 Sections - some of which include;
- Un-boxing,
Setup Tools, RX Port Assignments, Schematic Diagrams, Bench Tests,
Strut Shock Tension, Hinging Robart mounts, Steering system, Heat
Shielding, UAT and Plumbing, Routing of Wiring, Equipment layout,
Cockpit detailing, TX Settings, Flying your Viper Jet [Location,
throttle management, Brake testing]
- Pre-build and pre-flight notes
