Compatible with all DSM2/DSMX 2.4GHz Air transmitters and now featuring CPPM!

The OrangeRx R615X takes things to the next level by offering CPPM, true DSMX compatibility and utilizes dual antennae providing true signal reception diversity! Add to this programmable failsafe on binding, ultra fast brown-out recovery and wide voltage input range. The end result being an unbeatable value for the money aircraft receiver!

The all new CPPM functionality is an excellent feature for use with multi-rotor flight controllers such as the KK2.1, APM, MultiWii and others. This single line connection removes the weight and mess of additional wire leads for each individual channel. This is ideal for use on small frames where space is at a premium.

OrangeRx receivers are built using original components, MCUs and with state of the art SMT automation to ensure a quality product each and every time. Every R615X is manufactured using impedance matched PCBs with exact tuning to provide signal stability and range that exceeds any of the previous generation ORX products. In fact our testing has shown that the R615X exceeds the range of other receivers in the same class.

All R615X OrangeRx receivers are QC tested using our latest method that ensures range checking takes place as the receiver is programmed. Simply put, if the R615X cannot pass the range check it cannot be programmed, this ensures 100% of R615X are guaranteed to work flawlessly.

The R615X ushers in a new era of quality, reliability and performance for the OrangeRX line up.

Features:

 Super light weight 3.7g / 9.8 grams with case

 Compatible with DSM2/DSMX 1024/2048 aircraft radio and module systems

 CPPM output allowing for single line connection with compatible CPPM devices

 Short 25mm antennae for mounting in almost any location

 Wide input voltage: 3.7~9.6V

 6 Channels

 Compact design

Specification:

Channels: 6

Input voltage: 3.7~9.6V

Size: 19.5x30x10mm, 43x22x13mm with case

Weight: 3.7g / 9.8g with case

Included:

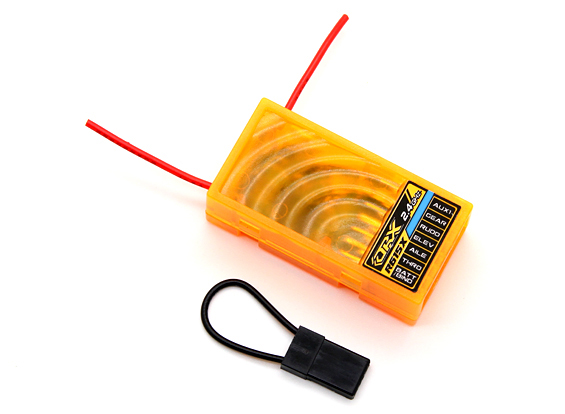

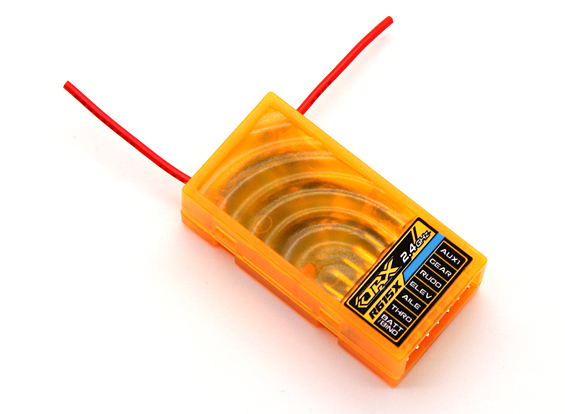

OrangeRx R615X DSM2/DSMX 2.4GHz compatible receiver

Bind plug

*Note:

1) This is not a Spektrum DSM2/X product, nor is it a copy of a Spektrum DSM2/X product.

The Spektrum and DSM2/X brand is a trademark of Horizon Hobbies USA.

2) OrangeRx quality is guaranteed.
